Digital Light Screens / Light Grids LVMC

For Detecting, Counting, Measuring and Classifying

Brochure to the Digital Light Curtain LVMC
Getting Started with the Digital Light Curtain LVMC
User Manual to the Digital Light Curtain LVMC

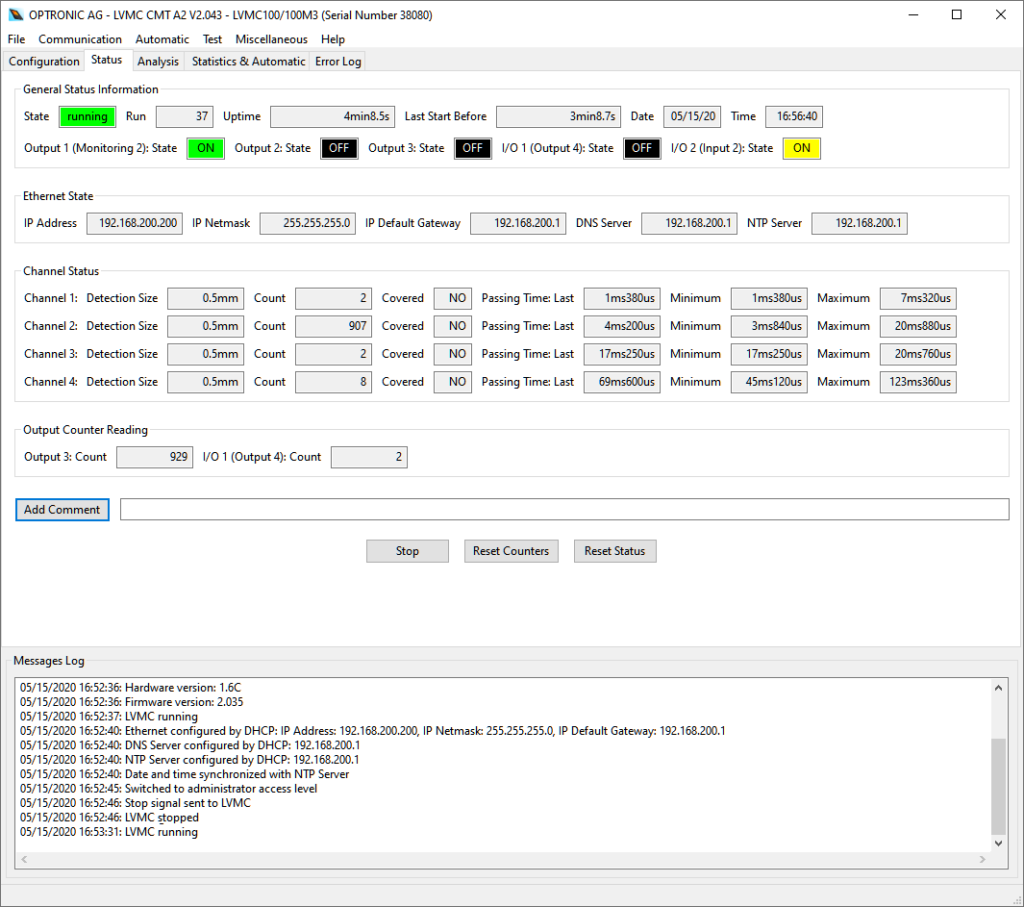

LVMC CMT (Windows based software for configuration, operation, analysis and monitoring)
LVMC RC (Windows based software for remote control via Ethernet)

lvmc

Features

  • Self-learning automatic mode
  • Object classification in up to four groups

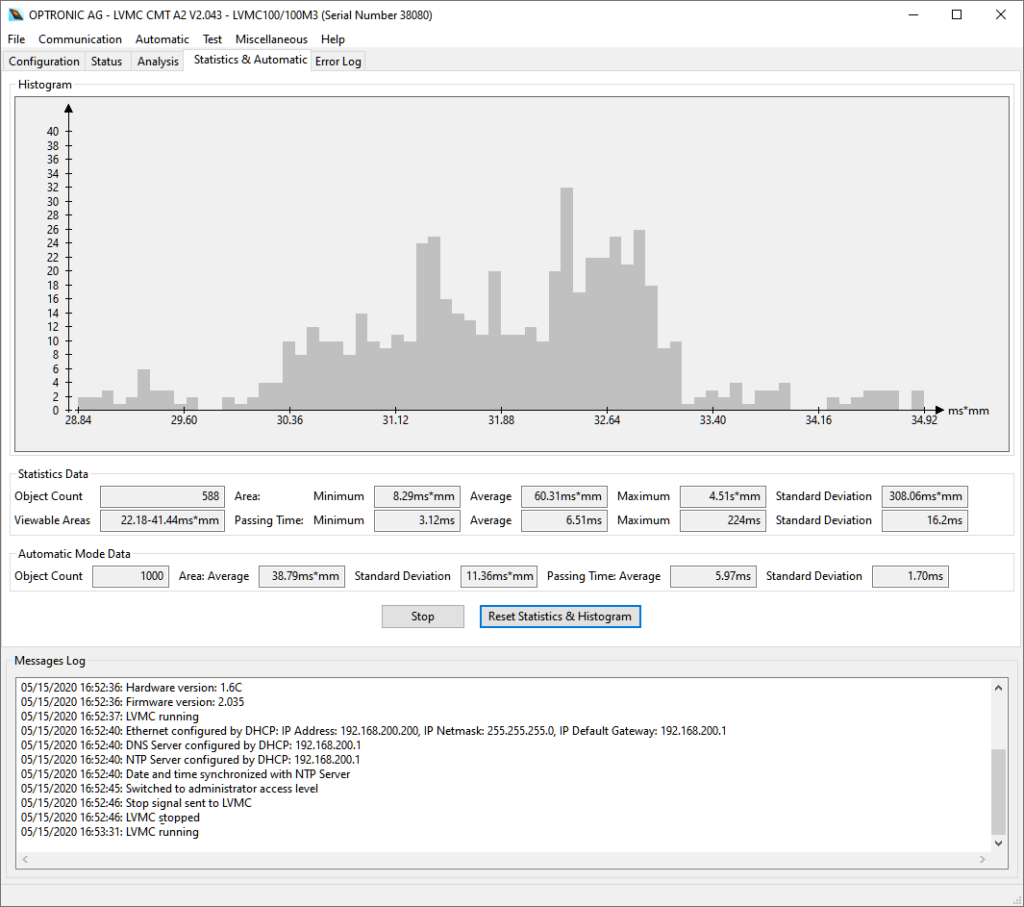

  • Analysis function, object visualization, statistics function
  • Size measurement, speed measurement, replacement for camera systems
  • Gapless sensing area, high sampling rate
  • Detection of complicated shapes

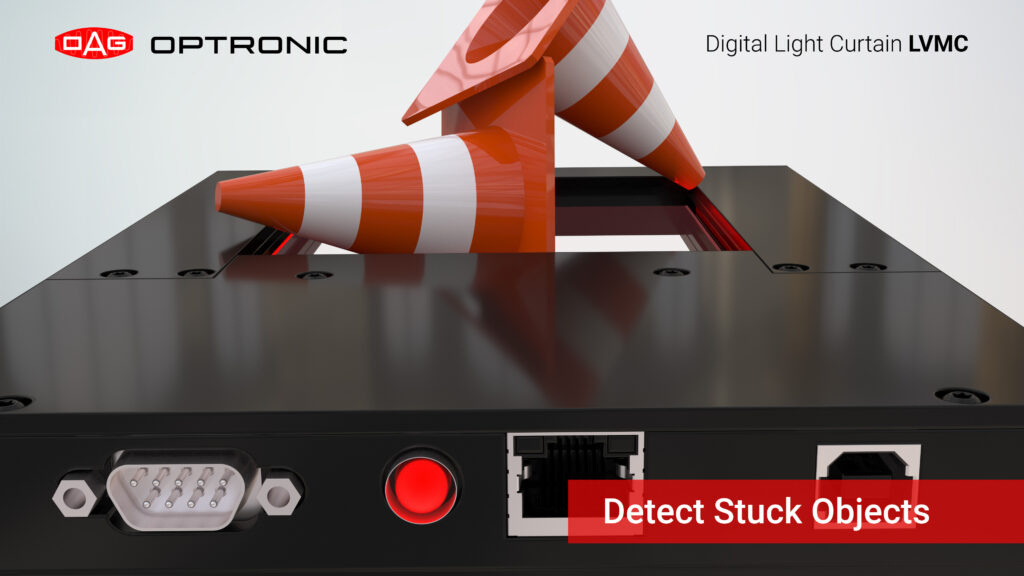

  • Detection of stuck or unseparated objects
  • Contamination monitoring
  • Logging of occurred error conditions
  • High operational reliability, insensitive to environmental influences
  • Flexibly configurable inputs and outputs (optocouplers), status LED

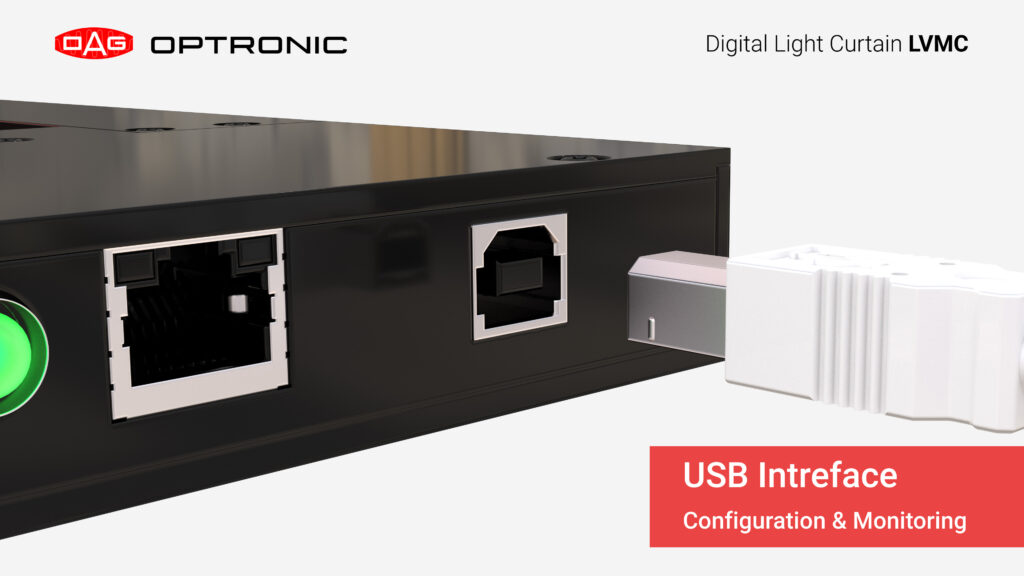

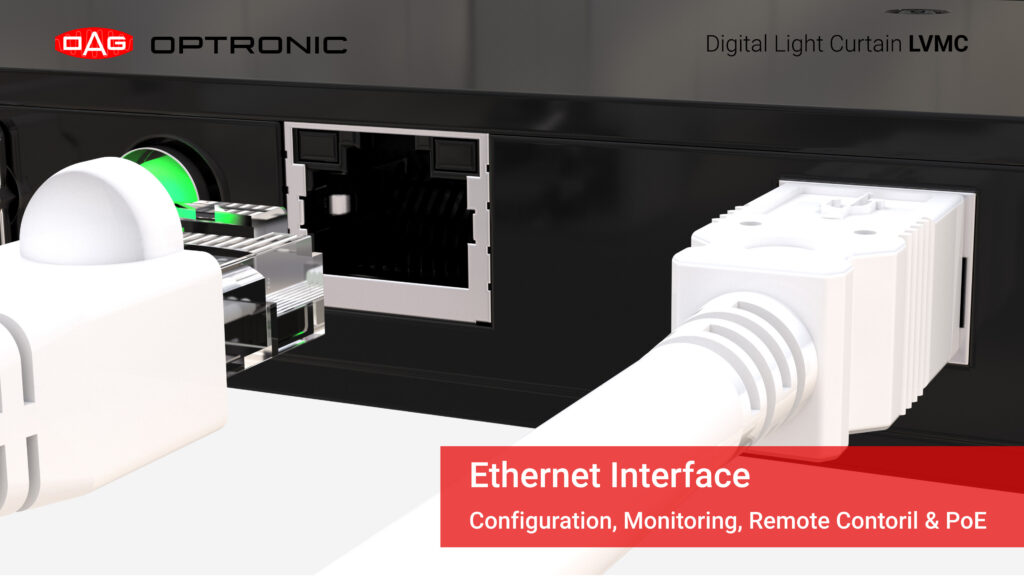

  • Operation via USB and Ethernet, remote control via Ethernet
  • HTTP server, DHCP client, NTP client
  • Robust metal housing, available in various dimensions
  • Supply voltage: +24V or Ethernet (PoE)
youtube-video-thumbnail

Available Standard Models

LVMC100/50M 1mm 100mm x 52mm 160mm x 165mm
LVMC100/100M 1mm 100mm x 100mm 160mm x 213mm
LVMC150/50M 1mm 150mm x 52mm 210mm x 165mm
LVMC150/100M 1mm 150mm x 100mm 210mm x 213mm
LVMC150/150M 1mm 150mm x 150mm 210mm x 263mm
LVMC200/100M 2mm 200mm x 100mm 260mm x 213mm
LVMC200/200M 2mm 200mm x 200mm 260mm x 313mm
LVMC250/100M 3mm 250mm x 100mm 310mm x 213mm
LVMC250/250M 3mm 250mm x 250mm 310mm x 363mm
LVMC300/100M 4mm 300mm x 100mm 360mm x 213mm
LVMC300/200M 4mm 300mm x 200mm 360mm x 313mm
LVMC400/400M 8mm 400mm x 400mm 460mm x 513mm
